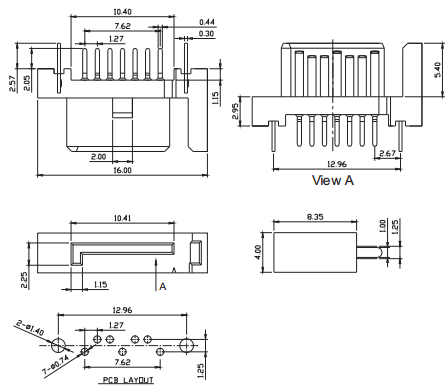

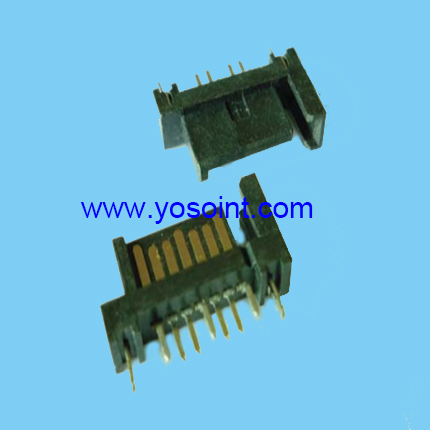

Product Name : SATA connector 7pins straight solder with peg

Contact pins : 7pins; 7+6pins; 15pins; 7+15pins;

solder type : RA; DIP; SMT

Shaped type : A type; B type; Frontal type; Inverted type; Open&closed frame

Plating : Gold or tin on contact; tin plated on solder tail

Insulator Color : Black; Red; Yellow

Directions

Product Specification

Rated current: 1.0AMP

Contact resistance: 20mΩ Initial

Withstand voltage:500V AC/DC

Insulation resistance: 1000mΩ Min

Opertion Temperature: -40℃ to +105℃

Contact Material: phosphor bronze

Peg: Brass

Contact Plating: Gold or tin on contact; tin plated on solder tail

Insulator Material: Polyester(UL94V-0)

Standard: LCP

Max.Processing Temp: 180℃ for 30-60 seconds

(200℃ for 10 seconds)
