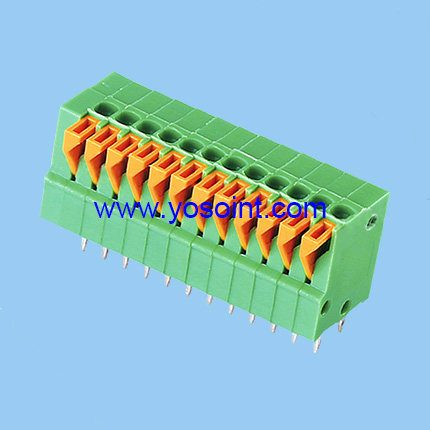

Product Name : 2.54mm Pitch PCB Spring Terminal Block straight solder

Insulator material : PBT;PA46;PA6T;PA66

Terminal type : Barrier;PCB screw type;Pluggable; PCB spring

Color : Black;Grey;Blue;Green; Yellow; White

Teminal material : Phosphor bronze or brass

Contact poles : 2~24 contacts

Directions

Product Information

Pitch	2.54mm;3.5mm;3.81mm;3.96mm;5.0mm;5.08mm;6.35mm;7.0mm;7.5mm;7.62mm;8.0mm;9.5mm;9.52mm;10.0mm;11.0mm; 10.16mm
Color	Black;Grey;Blue;Green;Yellow; White
Insulator material	PBT PA46 PA6T PA66
Insulator Flammability	UL94V-0
Teminal material	Phosphor bronze or brass
Tail length	3.4mm~5.0mm
Screw material	Brass or steel
