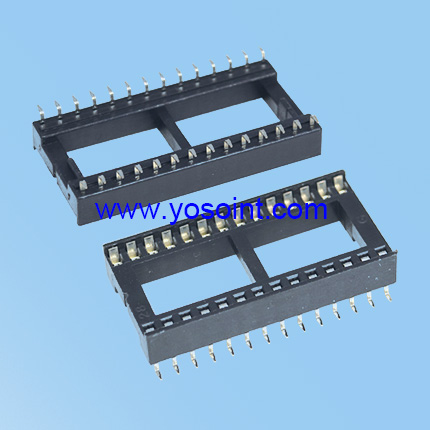

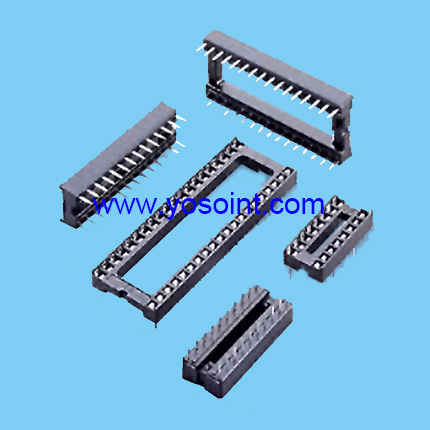

2.54 IC Socket H4.75 W7.62 Flat Pin stamped pin Straight solder
Product Name : 2.54 IC Socket H4.75 W7.62 Flat Pin stamped pin Straight solder
Product ID : YS3627-48SX
Pitch : 1.778mm;2.54mm
Insulator material : PPS-GF30-FR
Sleeve material : Brass CuZn36Pb3
Contact clips material : Beryllium copper
Type of terminal : DIP;SMT;RA;Wire-wrap
Directions
Product Information
| Pitch | 2.54mm; 1.778mm |
| Row pitch | 7.62mm;10.16mm;15.24mm;22.86mm |
| Type of terminal | DIP;SMT;RA;Wire-wrap |
| Number of contact pin | 02~80Pin |
| Plating | Gold plated; tin plated |
| Package method | Tube package;pallet package;tape&reel package |
| Climatic category | 55/125/21 |
| Operating humidity | Annual mean 75% |
Product Specification
Rated current: 3.0AMP
Contact resistance: 20mΩ Max
Withstand voltage: 1000V AC/DC
Insulation resistance: 1000mΩ Min
Opertion Temperature: -40C to +105C
Contact Material: Brass
Contact Plating: Au or Sn Over Ni.
Insulator Material: Polyester(UL94V-0)
Standard: PA6T
Max.Processing Temp: 230C for 30-60 seconds
(260C for 10 seconds)

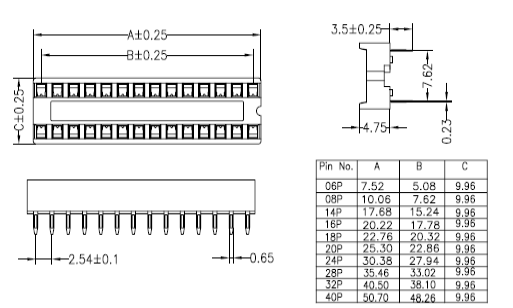

Product Drawing
