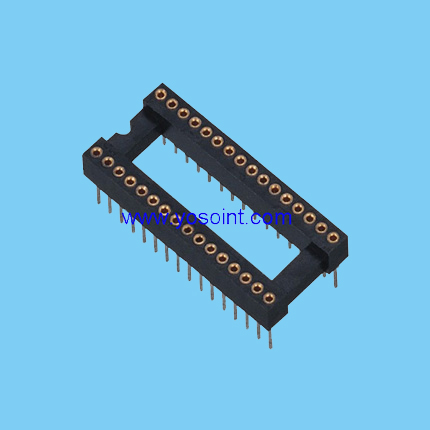

1.778mm IC socket H3.0 straight solder
Product Name : 1.778mm IC socket H3.0 straight solder
Product ID : YS3625-30SX
Pitch : 1.778mm;2.54mm
Insulator material : PPS-GF30-FR
Sleeve material : Brass CuZn36Pb3
Contact clips material : Beryllium copper
Type of terminal : DIP;SMT;RA;Wire-wrap
Directions
Product Information
| Pitch | 2.54mm; 1.778mm |
| Row pitch | 7.62mm;10.16mm;15.24mm;22.86mm |
| Type of terminal | DIP;SMT;RA;Wire-wrap |
| Number of contact pin | 02~80Pin |
| Plating | Gold plated; tin plated |
| Package method | Tube package;pallet package;tape&reel package |
| Climatic category | 55/125/21 |
| Operating humidity | Annual mean 75% |

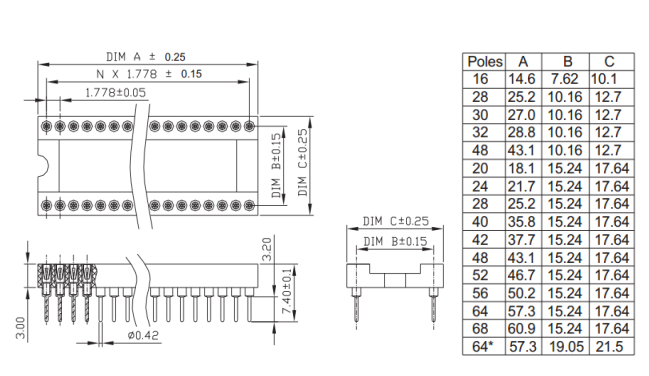

Product Drawing
