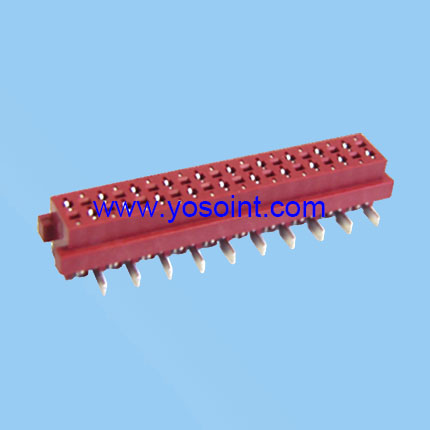

1.27mm Micro Red IDC connector Match Female SMT N type
Product Name : 1.27mm Micro Red IDC connector Match Female SMT N type
Product ID : YS4000FM
Pitch : 2.54mm 2.0mm 1.27mm
Contact material : Phosphor Bronze
Plating : Sn over Ni; Gold flsh/tin
Type of terminal : SMT DIP RA
Insulator material : PBT PA46
Directions
Product Information
| Pitch | 1.27mm |
| Type | FC type; FD type; M type; Crimping Type |
| Number of pin per row | 4~26pin |
| Insulator material | PBT PA46 |
| Insulator Flammability | UL 94V-0 |
| Contact material | copper phosphor; copper |
| Plating | gold plated; tin plated |
| Type or terminal | SMT RA DIP |
| Color | Red; Black; White |
| Package method | Bag package;Tube package;pallet package;tape&reel package |
Product Specification
Rated Current:1.0AMP
Contact Resistance: 20Ω Max
Withstand Voltage: 500V AC/DC
Insulation resistance: 1000mΩ Min
Operation Temperature: 40C to +105C
Contact Material: Brass
Contact Plating: Sn Over Ni
Insulator Material: Polyester(UL94V-0)
Standard: PA46
Max. Processing Temp: 230C for 30-60 Seconds
(260C for 10 Seconds)

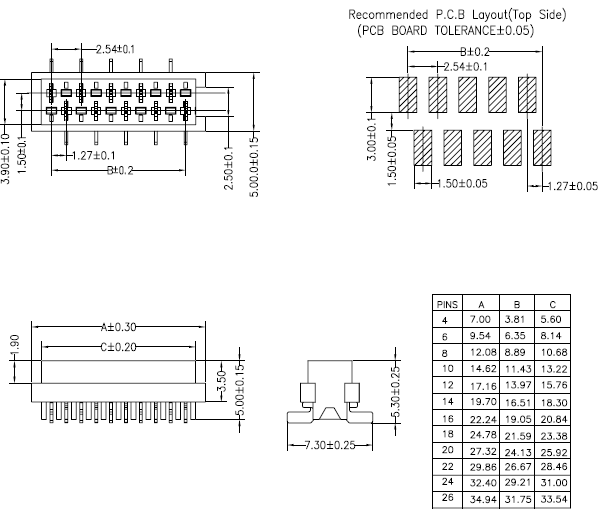

Product Drawing
