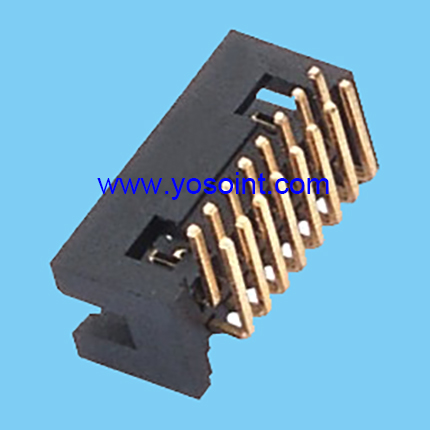

1.27mm Box Header connector H5.7mm Right angle Type
Product Name : 1.27mm Box Header connector H5.7mm Right angle Type
Product ID : YS3233RX
Pitch : 2.54mm 2.0mm 1.27mm ; 1.0mm
Contact material : copper phosphor; copper
Plating : gold plated; tin plated
Type of terminal : SMT DIP RA
Insulator material : LCP PBT PA46 PA6T PA9T
Directions
Product Information
| Pitch | 1.27mm |
| Insulator height | H4.9mm; H5.4mm; H5.7mm; H7.2mm; H9.9mm |
| Number of pin per row | 10~100pin |
| Insulator material | LCP PBT PA46 PA6T PA9T |
| Insulator Flammability | UL 94V-0 |
| Contact material | copper phosphor; copper |
| Plating | gold plated; tin plated |
| Type or terminal | SMT RA DIP |
| Color | grey;black; white |
| Package method | Bag package;Tube package;pallet package;tape&reel package |
| Climatic category | 55/125/21 |
| Operating temp. | -55...+125℃ |
Product Specification
Rated Current:1.0AMP
Contact Resistance: 20Ω Max
Withstand Voltage: 500V AC/DC
Insulation resistance: 1000mΩ Min
Operation Temperature: 40C to +105C
Contact Material: Brass
Contact Plating: Au Over Ni
Insulator Material: Polyester(UL94V-0)
Standard: PA6T
Max. Processing Temp: 230C for 30-60 Seconds
(260C for 10 Seconds)

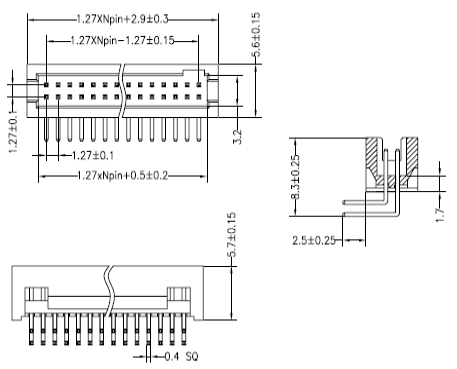

Product Drawing
