0.8mm Pitch Dual Row Pin Header - H1.38 SMT Type

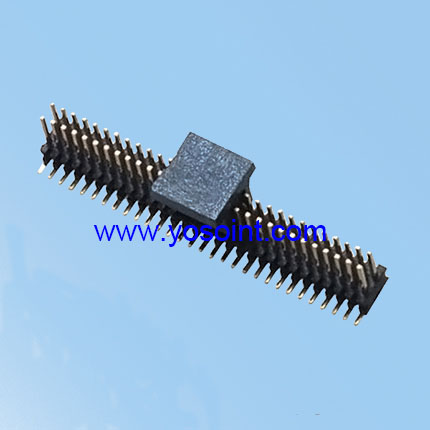

Product Name : 0.8mm Pitch Dual Row Pin Header - H1.38 SMT Type
Product ID : YS1713-12MX
Pitch : 0.8mm~5.08mm
Contact Pins : 02~80pins
Terminal material : Phosphor bronze or brass
Pating : gold plated or tin plated
Terminal type : DIP SMT RA ;Horizontal SMT
Directions
Product Information
| Pitch | 0.8mm |
| Insulator height | 1.38mm |
| Number of row | Single row; Double row |
| Insulator layer | Single layer; Double layer |
| Insulator material | PBT/ LCP/ PA46/ PA6T /PA9T |
| Teminal material | Phosphor bronze or brass |
| Type of terminal | DIP/ RA /SMT/ Horizontal SMT |
| plating | Gold plated; Tin plated |
| Climatic category |
55/125/21 |
| Operating humidity | Anuual 75% |
| Location peg | Wiht or Whiout |
|
Package mothod |
PE bag; Tube package; Pallet package ;Tape&reel package |
Product specification
Rated current: 0.75AMP
Contact resistance: 20mΩ Max
Withstand voltage: 530V AC/DC
Insulation resistance: 1000mΩ Min
Opertion Temperature: -40C to +105C
Contact Material: Brass
Contact Plating: Au or Sn Over Ni.
Insulator Material: Polyester(UL94V-0)
Standard: PA6T
Max.Processing Temp: 230C for 30-60 seconds
(260C for 10 seconds)

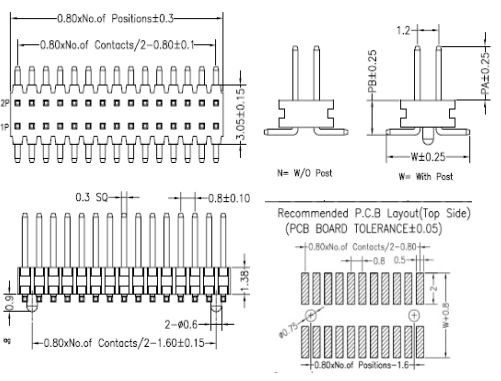

Product Drawing
