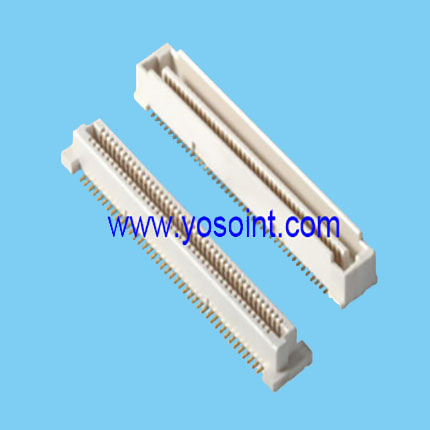

Product Name : 0.8mm BTB connector 20~140P male H4.6 SMT W5.7 with peg

Product ID : YS3710M(F)X

Pitch : 0.5mm; 0.6mm; 0.635mm; 0.8mm; 1.0mm; 1.25mm; 2.54mm

Insulator material : PA9T/LCP(UL94V-0)

Insulator height : PA9T/LCP(UL94V-0)

Contact Material : Phosphor Bronze

Packing : Tube packing; Reel packing

Directions

Product Information

Pitch	0.8mm;
Insulator height	H3.8 for female/ H4.6 for male
Type of terminal	SMT
Number of cocntact pins	24P~140P
Plating	Gold over Ni; selective gold
Package method	Tube package;tape&reel package

Electical Rating:AC/DC 50V 0.5A

Insulation Resistance: 500MΩ

Withstand Volt:200VAC/minute

Oprating Temperature:-40℃ to +105℃

Contact Material: Phosphor Bronze

Contact: Au over Ni

Insulator Material: PA9T/LCP(UL94V-0)

Max. Precessing Temp: 230℃ for 30~60 seconds

(260℃ for 10seconds)

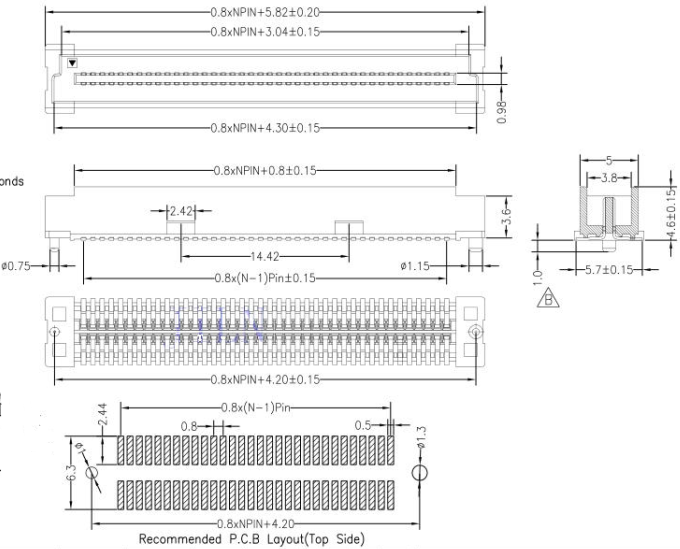

0.8mm BTB 20~140P male H4.6 SMT W5.7 with peg

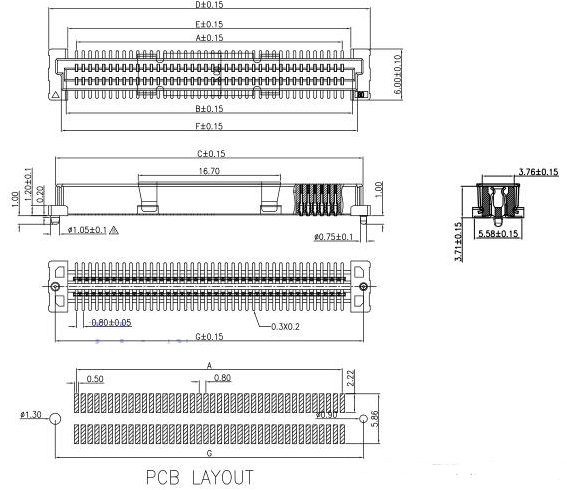

0.8mm BTB 20~140P female H3.8 SMT W5.58 with peg
