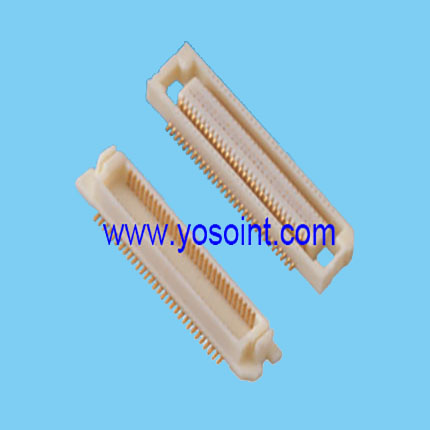

Product Name : 0.6mm BTB connector 10~100P male header H2.2 SMT W7.0 with peg

Product ID : YS3721MX

Pitch : 0.5mm; 0.6mm; 0.635mm; 0.8mm; 1.0mm; 1.25mm; 2.54mm

Insulator material : PA9T/LCP(UL94V-0)

Insulator height : PA9T/LCP(UL94V-0)

Contact Material : Phosphor Bronze

Packing : Tube packing; Reel packing

Directions

Product Information

Pitch	0.6mm;
Insulator height	H2.2mm for male/ H2.35mm for female
Type of terminal	SMT
Number of contact pin	60pin; 80pin; 100pin
Plating	Gold over Ni; selective gold
Package method	Tube package;tape&reel package

Electical Rating:AC/DC 50V 0.5A

Insulation Resistance: 500MΩ

Withstand Volt:200VAC/minute

Oprating Temperature:-40℃ to +105℃

Contact Material: Phosphor Bronze

Contact: Au over Ni

Insulator Material: PA9T/LCP(UL94V-0)

Max. Precessing Temp: 230℃ for 30~60 seconds

(260℃ for 10seconds)

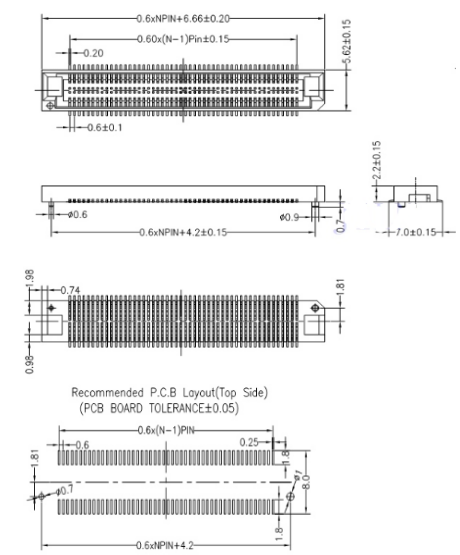

Male header

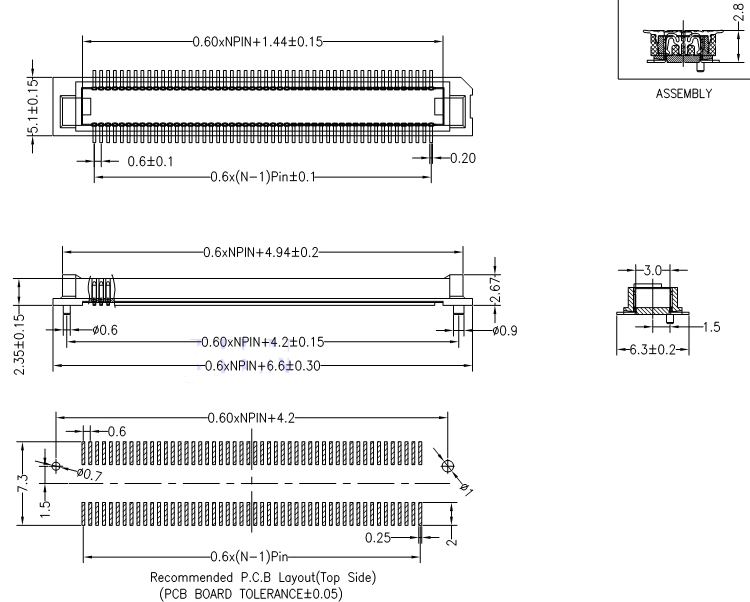

Female header
