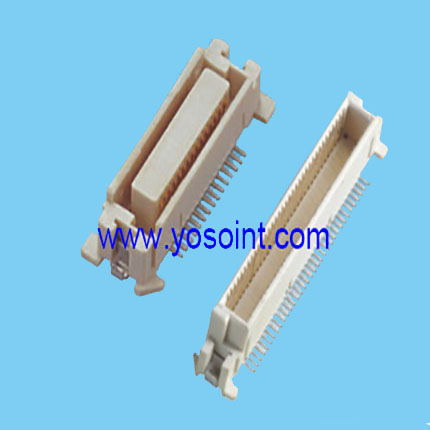

0.635mm BTB connector 10~100P female header H5.0 SMT W5.1 with peg and post
Product Name : 0.635mm BTB connector 10~100P female header H5.0 SMT W5.1 with peg and post
Product ID : YS3722M(F)X
Pitch : 0.5mm; 0.6mm; 0.635mm; 0.8mm; 1.0mm; 1.25mm; 2.54mm
Insulator material : PA9T/LCP(UL94V-0)
Insulator height : PA9T/LCP(UL94V-0)
Contact Material : Phosphor Bronze
Packing : Tube packing; Reel packing
Directions
Product Information
| Pitch | 0.635mm; |
| Insulator height | H5.0 for female/ H3.94 for male |
| Type of terminal | SMT |
| Number of cocntact pins | 10P~100P |
| Plating | Gold over Ni; selective gold |
| Package method | Tube package;tape&reel package |
Product Specification
Electical Rating:AC/DC 50V 0.5A
Insulation Resistance: 500MΩ
Withstand Volt:200VAC/minute
Oprating Temperature:-40℃ to +105℃
Contact Material: Phosphor Bronze
Contact: Au over Ni
Insulator Material: PA9T/LCP(UL94V-0)
Max. Precessing Temp: 230℃ for 30~60 seconds
(260℃ for 10seconds)
Product Drawing

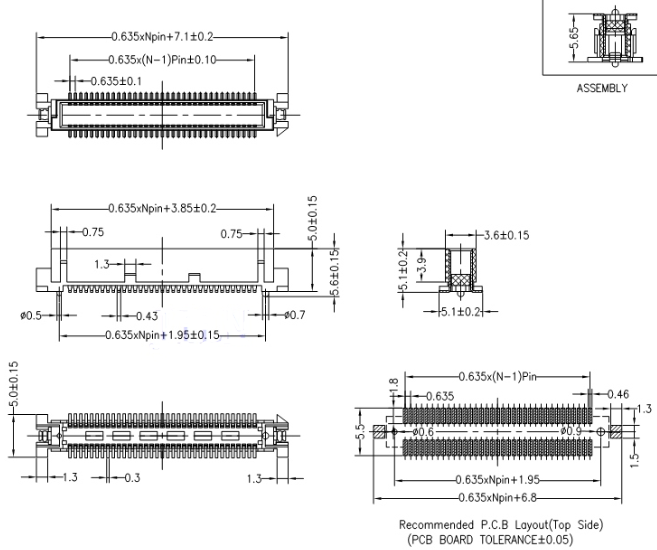

0.635mm BTB 10~100P female header H5.0 SMT W5.1 with peg and post

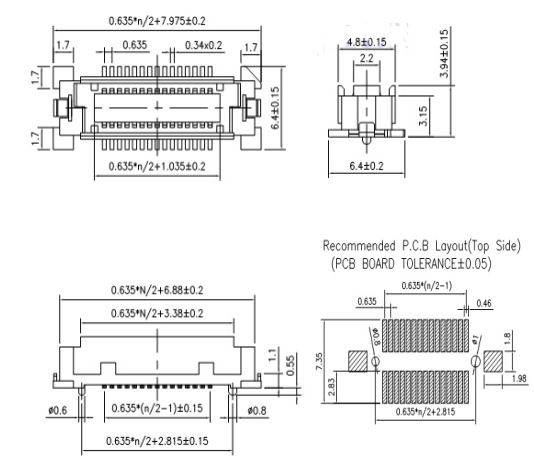

0.635mm BTB 10~100P male header H3.94 SMT W6.4 with peg and post
